Compression – Fit-line Engineering

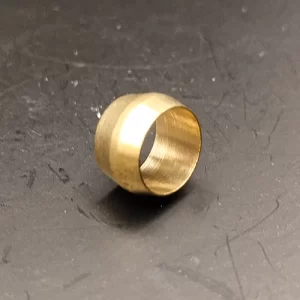

Compression Sleeves

Material Brass

Code	Thread Size	Thread Size (D2)
BT-G2	1/8"	1/8"
BT-G3	3/16"	3/16"
BT-G4	1/4"	1/4"
BT-G5	5/16"	5/16"
BT-G6	3/8"	3/8"
BT-G8	1/2"	1/2"
BT-G10	5/8"	5/8"
BT-G12	3/4"	3/4"

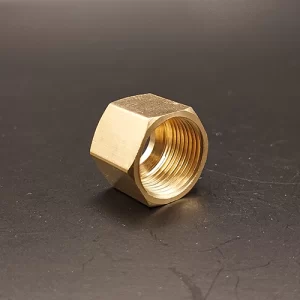

Compression Nuts

Material Brass

Code	Thread Size	Thread Size (D2)
BT-H2	1/8"	1/8"
BT-H3	3/16"	3/16"
BT-H4	1/4"	1/4"
BT-H5	5/16"	5/16"
BT-H6	3/8"	3/8"
BT-H8	1/2"	1/2"
BT-H10	5/8"	5/8"
BT-H12	3/4"	3/4"

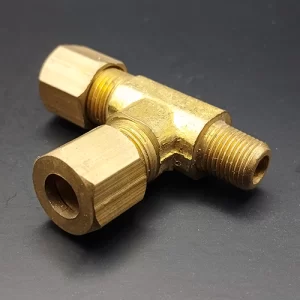

Compression Male Run Tee

Material Brass

Code	Thread Size	Thread Size (D2)
BT-D52	1/8"	5/16"
BT-D54	1/4"	5/16"
BT-D64	1/4"	3/8"
BT-D86	3/8"	1/2"

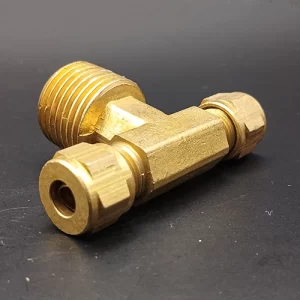

Compression Male Branch Tee

Material Brass

Code	Thread Size	Thread Size (D2)
BT-E48	1/2"	1/4"
BT-E58	1/2"	5/16"
BT-E64	1/4"	3/8"
BT-E66	3/8"	3/8"
BT-E68	1/2"	3/8"

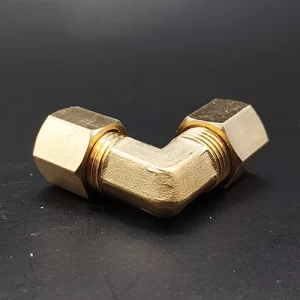

Compression Union Elbow

Material Brass

Code	Thread Size	Thread Size (D2)
BT-L22	1/8"	1/8"
BT-L33	3/16"	3/16"
BT-L44	1/4"	1/4"
BT-L55	5/16"	5/16"
BT-L66	3/8"	3/8"
BT-L88	1/2"	1/2"

Compression Female Connector

Material Brass

Code	Thread Size	Thread Size (D2)
BT-M22	1/8"	1/8"
BT-M24	1/4"	1/8"
BT-M32	1/8"	3/16"
BT-M34	1/4"	3/16"
BT-M42	1/8"	1/4"
BT-M44	1/4"	1/4"
BT-M46	3/8"	1/4"
BT-M52	1/8"	5/16"
BT-M54	1/4"	5/16"
BT-M56	3/8"	5/16"
BT-M58	1/2"	5/16"
BT-M62	1/8"	3/8"
BT-M64	1/4"	3/8"
BT-M66	3/8"	3/8"
BT-M68	1/2"	3/8"
BT-M86	3/8"	1/2"
BT-M88	1/2"	1/2"

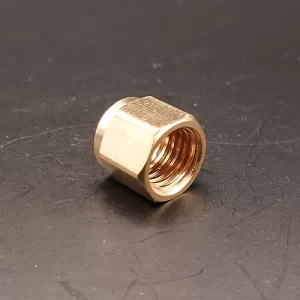

Compression Nut

Material Brass

Code	Tube OD
M6104	4mm
M6106	6mm
M6108	8mm
M6110	10mm
M6112	12mm

Compression Double

Material Brass

Code	Tube OD
M6204	4mm
M6206	6mm
M6208	8mm
M6210	10mm
M6212	12mm

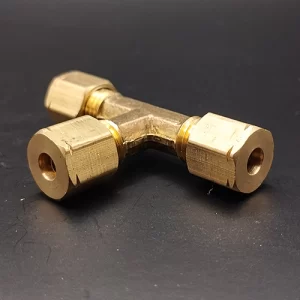

Compression Union Tee

Material Brass

Code	Tube OD
M6404	4mm
M6406	6mm
M6408	8mm
M6410	10mm
M6412	12mm

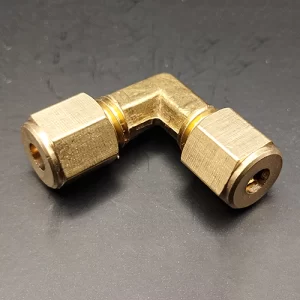

Compression Union Elbow

Material Brass

Code	Tube OD
M6504	4mm
M6506	6mm
M6508	8mm
M6510	10mm
M6512	12mm

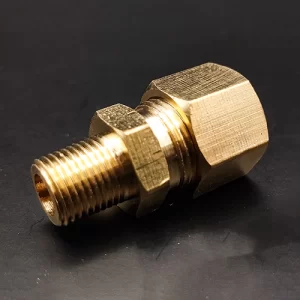

Compression Male Connector

Material Brass

Code	Tube OD	Thread Size
M680402	4mm	1/8"
M680404	4mm	1/4"
M680602	6mm	1/8"
M680604	6mm	1/4"
M680606	6mm	3/8"
M680608	6mm	1/2"
M680802	8mm	1/8"
M680804	8mm	1/4"
M680806	8mm	3/8"
M680808	8mm	1/2"
M681002	10mm	1/8"
M681004	10mm	1/4"
M681006	10mm	3/8"
M681008	10mm	1/2"
M681202	12mm	1/8"
M681204	12mm	1/4"
M681206	12mm	3/8"
M681208	12mm	1/2"

Compression Male Elbow Connector

Material Brass

Code	Tube OD	Thread Size
M690402	4mm	1/8"
M690404	4mm	1/4"
M690602	6mm	1/8"
M690604	6mm	1/4"
M690606	6mm	3/8"
M690608	6mm	1/2"
M690802	8mm	1/8"
M690804	8mm	1/4"
M690806	8mm	3/8"
M690808	8mm	1/2"
M691002	10mm	1/8"
M691004	10mm	1/4"
M691006	10mm	3/8"
M691008	10mm	1/2"
M691204	12mm	1/4"
M691206	12mm	3/8"
M691208	12mm	1/2"

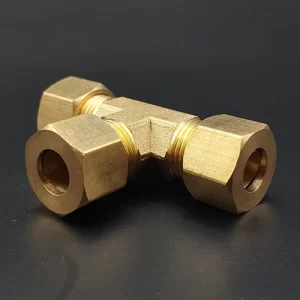

Compression Union Tee

Material Brass

Code	Thread Size	Thread Size (D2)
BT-K222	1/8"	1/8"
BT-K333	3/16"	3/16"
BT-K444	1/4"	1/4"
BT-K555	5/16"	5/16"
BT-K666	3/8"	3/8"
BT-K888	1/2"	1/2"
BT-K101010	5/8"	5/8"
BT-K121212	3/4"	3/4"

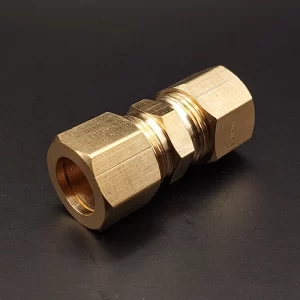

Compression Double Union

Material Brass

Code	Thread Size
BT-J22	1/8"
BT-J33	3/16"
BT-J44	1/4"
BT-J55	5/16"
BT-J66	3/8"
BT-J88	1/2"
BT-J1010	5/8"
BT-J1212	3/4"

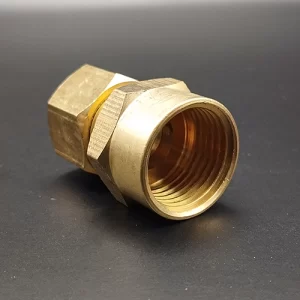

Compression Female Connector

Material Brass

Code	Tube OD	Thread Size
M660402	4mm	1/8"
M660404	4mm	1/4"
M660602	6mm	1/8"
M660604	6mm	1/4"
M660606	6mm	3/8"
M660608	6mm	1/2"
M660802	8mm	1/8"
M660804	8mm	1/4"
M660806	8mm	3/8"
M660808	8mm	1/2"
M661002	10mm	1/8"
M661004	10mm	1/4"
M661006	10mm	3/8"
M661008	10mm	1/2"
M661206	12mm	3/8"
M661208	12mm	1/2"

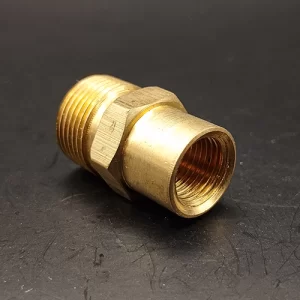

Compression Male Connector

Material Brass

Code	Thread Size	Thread Size (D2)
BT-A22	1/8"	1/8"
BT-A24	1/4"	1/8"
BT-A32	1/8"	3/16"
BT-A34	1/4"	3/16"
BT-A42	1/8"	1/4"
BT-A44	1/4"	1/4"
BT-A46	3/8"	1/4"
BT-A48	1/2"	1/4"
BT-A52	1/8"	5/16"
BT-A54	1/4"	5/16"
BT-A56	3/8"	5/16"
BT-A58	1/2"	5/16"
BT-A62	1/8"	3/8"
BT-A64	1/4"	3/8"
BT-A66	3/8"	3/8"
BT-A68	1/2"	3/8"
BT-A82	1/8"	1/2"
BT-A84	1/4"	1/2"
BT-A86	3/8"	1/2"
BT-A88	1/2"	1/2"
BT-A108	1/2"	1/8"
BT-A128	1/2"	3/4"
BT-A1212	3/4"	3/4"

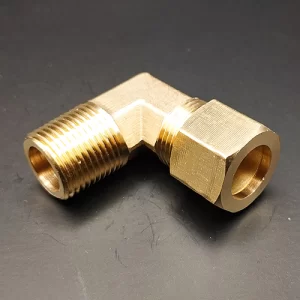

Compression Male Elbow

Material Brass

Code	Thread Size	Thread Size (D2)
BT-B22	1/8"	1/8"
BT-B32	1/8"	3/16"
BT-B34	1/4"	3/16"
BT-B42	1/8"	1/4"
BT-B44	1/4"	1/4"
BT-B46	3/8"	1/4"
BT-B48	1/2"	1/4"
BT-B52	1/8"	5/16"
BT-B54	1/4"	5/16"
BT-B56	3/8"	5/16"
BT-B58	1/2"	5/16"
BT-B62	1/8"	3/8"
BT-B64	1/4"	3/8"
BT-B66	3/8"	3/8"
BT-B68	1/2"	3/8"
BT-B84	1/4"	1/2"
BT-B86	3/8"	1/2"
BT-B88	1/2"	1/2"
BT-B108	1/2"	5/8"
BT-B1212	3/4"	3/4"

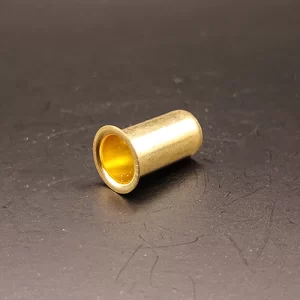

Compression Hose Insert

Material Brass

Code	Tube OD	Tube OD2
M26104	4mm	2mm
M26106	6mm	4mm
M26108	8mm	6mm
M26110	10mm	7mm
M26112x8	12mm	8mm
M26112x9	12mm	9mm
M26112x10	12mm	10mm

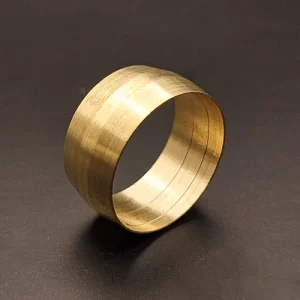

Compression Sleeve

Material Brass

Code	Tube OD
M60N04	4mm
M60N06	6mm
M60N08	8mm
M60N10	10mm
M60N12	12mm
