Pneumatic Fitting – Fit-line Engineering

CK

Material Plastic

Code	Tube OD	Thread Size
CK04-01	4mm	1/8"
CK06-01	6mm	1/8"
CK06-02	6mm	1/4"
CK08-01	8mm	1/8"
CK08-02	8mm	1/4"
CK08-03	8mm	3/8"
CK10-02	10mm	1/4"
CK10-03	10mm	3/8"
CK12-02	12mm	1/4"
CK12-03	12mm	3/8"

GCK

Material Plastic

Code	Tube OD	Thread Size
GCK04-01	4mm	1/8"
GCK06-01	6mm	1/8"
GCK06-02	6mm	1/4"
GCK08-01	8mm	1/8"
GCK08-02	8mm	1/4"
GCK08-03	8mm	3/8"
GCK10-02	10mm	1/4"
GCK10-03	10mm	3/8"
GCK12-02	12mm	1/4"

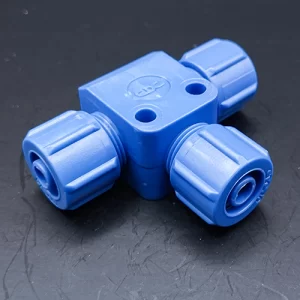

FCK

Material Plastic

Code	Tube OD
FCK04	4mm
FCK06	6mm
FCK08	8mm
FCK10	10mm
FCK12	12mm

Male Straight

One Touch Fittings – Male Straight are pneumatic connectors designed for quick and secure tube connections. Featuring a male threaded end and a push-to-connect fitting, they provide an efficient and leak-free solution for connecting tubing to threaded ports in pneumatic systems. These fittings ensure easy installation and reliable performance in air and fluid applications.

Material Stainless Steel, Plastic

Code	Tube OD	Thread Size
PC-S04-M5	4mm	M5
PC-S04-01	4mm	1/8"
PC-S04-02	4mm	1/4"
PC-S04-03	4mm	3/8"
PC-S06-M5	6mm	M5
PC-S06-01	6mm	1/8"
PC-S06-02	6mm	1/4"
PC-S06-03	6mm	3/8"
PC-S06-04	6mm	1/2"
PC-S08-01	8mm	1/8"
PC-S08-02	8mm	1/4"
PC-S08-03	8mm	3/8"
PC-S08-04	8mm	1/2"
PC-S10-01	10mm	1/8"
PC-S10-02	10mm	1/4"
PC-S10-03	10mm	3/8"
PC-S10-04	10mm	1/2"
PC-S12-01	12mm	1/8"
PC-S12-02	12mm	1/4"
PC-S12-03	12mm	3/8"
PC-S12-04	12mm	1/2"
PC-S14-02	14mm	1/4"
PC-S14-03	14mm	3/8"
PC-S14-04	14mm	1/2"
PC-S16-02	16mm	1/4"
PC-S16-03	16mm	3/8"
PC-S16-04	16mm	1/2"

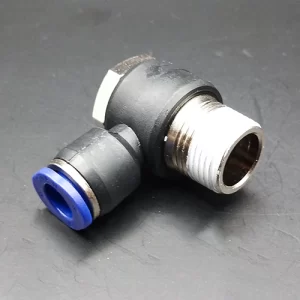

Male Banjo

One Touch Fittings – Male Banjo are compact pneumatic connectors designed for efficient tube-to-threaded port connections at a 90-degree angle. Featuring a male threaded end and a push-to-connect fitting, they provide a secure and space-saving solution for routing pneumatic tubing in tight spaces. These fittings ensure easy installation, reliable sealing, and optimal airflow in air and fluid systems.

Material Stainless Steel, Plastic

Code	Tube OD	Thread Size
PH-S04-M5	4mm	M5
PH-S04-01	4mm	1/8"
PH-S04-02	4mm	1/4"
PH-S06-M5	6mm	M5
PH-S06-01	6mm	1/8"
PH-S06-02	6mm	1/4"
PH-S06-03	6mm	3/8"
PH-S06-04	6mm	1/2"
PH-S08-01	8mm	1/8"
PH-S08-02	8mm	1/4"
PH-S08-03	8mm	3/8"
PH-S08-04	8mm	1/2"
PH-S10-01	10mm	1/8"
PH-S10-02	10mm	1/4"
PH-S10-03	10mm	3/8"
PH-S10-04	10mm	1/2"
PH-S12-01	12mm	1/4"
PH-S12-02	12mm	3/8"
PH-S12-03	12mm	1/2"

Female Straight

Material Stainless Steel, Plastic

Code	Tube OD	Thread Size
PCF-S04-01	4mm	1/8"
PCF-S04-02	4mm	1/4"
PCF-S04-03	4mm	3/8"
PCF-S06-01	6mm	1/8"
PCF-S06-02	6mm	1/4"
PCF-S06-03	6mm	3/8"
PCF-S08-01	8mm	1/8"
PCF-S08-02	8mm	1/4"
PCF-S08-03	8mm	3/8"
PCF-S08-04	8mm	1/2"
PCF-S10-01	10mm	1/8"
PCF-S10-02	10mm	1/4"
PCF-S10-03	10mm	3/8"
PCF-S10-04	10mm	1/2"
PCF-S12-02	12mm	1/4"
PCF-S12-03	12mm	3/8"
PCF-S12-04	12mm	1/2"
PCF-S14-03	14mm	3/8"
PCF-S14-04	14mm	1/2"
PCF-S16-04	16mm	1/2"

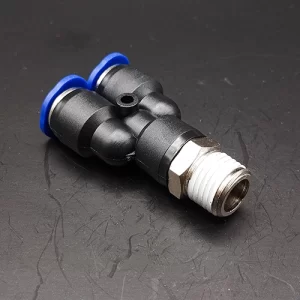

Y Connector

Material Stainless Steel, Plastic

Code	Tube OD	Thread Size
PWT-S04-M5	4mm	M5
PWT-S04-M6	4mm	M6
PWT-S04-01	4mm	1/8"
PWT-S04-02	4mm	1/4"
PWT-S04-03	4mm	3/8"
PWT-S06-M5	6mm	M5
PWT-S06-M6	6mm	M6
PWT-S06-01	6mm	1/8"
PWT-S06-02	6mm	1/4"
PWT-S06-03	6mm	3/8"
PWT-S06-04	6mm	1/2"
PWT-S08-01	8mm	1/8"
PWT-S08-02	8mm	1/4"
PWT-S08-03	8mm	3/8"
PWT-S08-04	8mm	1/2"
PWT-S10-01	10mm	1/8"
PWT-S10-02	10mm	1/4"
PWT-S10-03	10mm	3/8"
PWT-S10-04	10mm	1/2"
PWT-S12-01	12mm	1/8"
PWT-S12-02	12mm	1/4"
PWT-S12-03	12mm	3/8"
PWT-S12-04	12mm	1/2"

Union Tee

Material Stainless Steel, Plastic

Code	Tube OD
PUT-S04	4mm
PUT-S06	6mm
PUT-S08	8mm
PUT-S10	10mm
PUT-S12	12mm
PUT-S14	14mm
PUT-S16	16mm

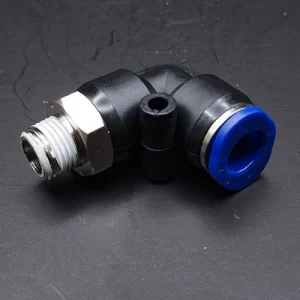

Male Elbow

Material Stainless Steel, Plastic

Code	Tube OD	Thread Size
PL-S04-M5	4mm	M5
PL-S04-01	4mm	1/8"
PL-S04-02	4mm	1/4"
PL-S04-03	4mm	3/8"
PL-S06-M5	6mm	M5
PL-S06-01	6mm	1/8"
PL-S06-02	6mm	1/4"
PL-S06-03	6mm	3/8"
PL-S06-04	6mm	1/2"
PL-S08-01	8mm	1/8"
PL-S08-02	8mm	1/4"
PL-S08-03	8mm	3/8"
PL-S08-04	8mm	1/2"
PL-S10-01	10mm	1/8"
PL-S10-02	10mm	1/4"
PL-S10-03	10mm	3/8"
PL-S10-04	10mm	1/2"
PL-S12-01	12mm	1/8"
PL-S12-02	12mm	1/4"
PL-S12-03	12mm	3/8"
PL-S12-04	12mm	1/2"
PL-S14-02	14mm	1/4"
PL-S14-03	14mm	3/8"
PL-S14-04	14mm	1/2"
PL-S16-02	16mm	1/4"
PL-S16-03	16mm	3/8"
PL-S16-04	16mm	1/2"

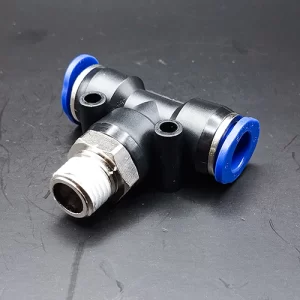

Male Branch Tee

Material Stainless Steel, Plastic

Code	Tube OD	Thread Size
PT-S04-M5	4mm	M5
PT-S04-01	4mm	1/8"
PT-S04-02	4mm	1/4"
PT-S04-03	4mm	3/8"
PT-S06-M5	6mm	M5
PT-S06-01	6mm	1/8"
PT-S06-02	6mm	1/4"
PT-S06-03	6mm	3/8"
PT-S06-04	6mm	1/2"
PT-S08-01	8mm	1/8"
PT-S08-02	8mm	1/4"
PT-S08-03	8mm	3/8"
PT-S08-04	8mm	1/2"
PT-S10-01	10mm	1/8"
PT-S10-02	10mm	1/4"
PT-S10-03	10mm	3/8"
PT-S10-04	10mm	1/2"
PT-S12-01	12mm	1/8"
PT-S12-02	12mm	1/4"
PT-S12-03	12mm	3/8"
PT-S12-04	12mm	1/2"

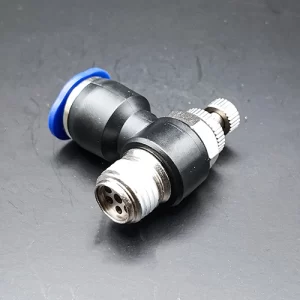

Speed Controller

Material Stainless Steel, Plastic

Code	Tube OD	Thread Size
NSE-S04-M5	4mm	M5
NSE-S04-01	4mm	1/8"
NSE-S04-02	4mm	1/4"
NSE-S06-M5	6mm	M5
NSE-S06-01	6mm	1/8"
NSE-S06-02	6mm	1/4"
NSE-S06-03	6mm	3/8"
NSE-S06-04	6mm	1/2"
NSE-S08-01	8mm	1/8"
NSE-S08-02	8mm	1/4"
NSE-S08-03	8mm	3/8"
NSE-S08-04	8mm	1/2"
NSE-S10-02	10mm	1/4"
NSE-S10-03	10mm	3/8"
NSE-S10-04	10mm	1/2"
NSE-S12-02	12mm	1/4"
NSE-S12-03	12mm	3/8"
NSE-S12-04	12mm	1/2"

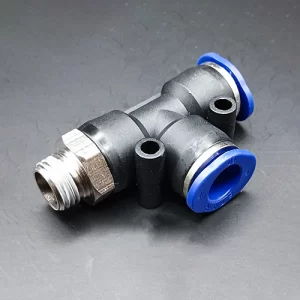

Male Run Tee

Material Stainless Steel, Plastic

Code	Tube OD	Thread Size
PST-S04-M5	4mm	M5
PST-S04-01	4mm	1/8"
PST-S04-02	4mm	1/4"
PST-S04-03	4mm	3/8"
PST-S06-M5	6mm	M5
PST-S06-01	6mm	1/8"
PST-S06-02	6mm	1/4"
PST-S06-03	6mm	3/8"
PST-S08-01	8mm	1/8"
PST-S08-02	8mm	1/4"
PST-S08-03	8mm	3/8"
PST-S08-04	8mm	1/2"
PST-S10-01	10mm	1/8"
PST-S10-02	10mm	1/4"
PST-S10-03	10mm	3/8"
PST-S10-04	10mm	1/2"
PST-S12-01	12mm	1/8"
PST-S12-02	12mm	1/4"
PST-S12-03	12mm	3/8"
PST-S12-04	12mm	1/2"

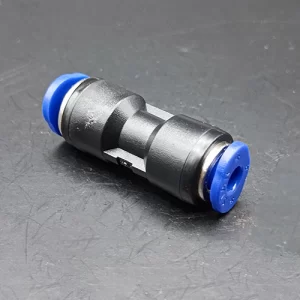

Union Straight

Material Stainless Steel, Plastic

Code	Tube OD
PUC-S04	4mm
PUC-S06	6mm
PUC-S08	8mm
PUC-S10	10mm
PUC-S12	12mm
PUC-S14	14mm
PUC-S16	16mm

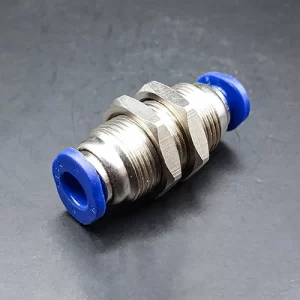

Bulkhead

Material Stainless Steel, Plastic

Code	Tube OD	Tube OD2
PMM-S0400	4mm	4mm
PMM-S0600	6mm	6mm
PMM-S0800	8mm	8mm
PMM-S1000	10mm	10mm
PMM-S1200	12mm	12mm

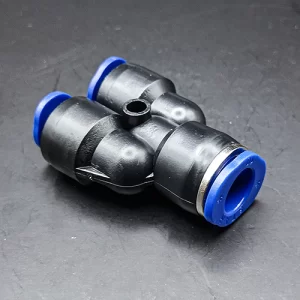

Union Y

Material Stainless Steel, Plastic

Code	Tube OD	Tube OD2
PY-S0400	4mm	4mm
PY-S0600	6mm	6mm
PY-S0800	8mm	8mm
PY-S1000	10mm	10mm
PY-S1200	12mm	12mm
PY-S1600	16mm	16mm

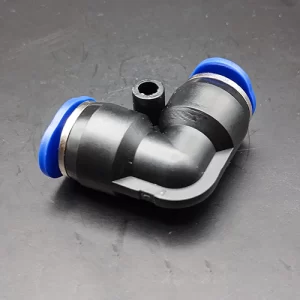

Union Elbow

Material Stainless Steel, Plastic

Code	Tube OD	Tube OD2
PUL-S0400	4mm	4mm
PUL-S0600	6mm	6mm
PUL-S0800	8mm	8mm
PUL-S1000	10mm	10mm
PUL-S1200	12mm	12mm
PUL-S1400	14mm	14mm
PUL-S1600	16mm	16mm

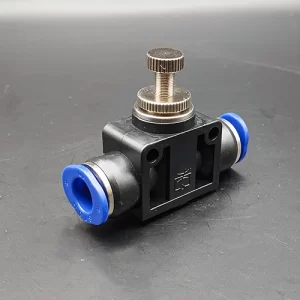

Speed Controller (Flat)

Material Stainless Steel, Plastic

Code	Tube OD
NSF-S04	4mm
NSF-S06	6mm
NSF-S08	8mm
NSF-S10	10mm
NSF-S12	12mm

Reducer Y

Material Stainless Steel, Plastic

Code	Tube OD	Tube OD2
PW-S06-04	6mm	4mm
PW-S08-06	8mm	6mm
PW-S10-08	10mm	8mm
PW-S12-10	12mm	10mm

Reducer Union Straight

Material Stainless Steel, Plastic

Code	Tube OD	Tube OD2
PG-S06-04	6mm	4mm
PG-S08-06	8mm	6mm
PG-S10-08	10mm	8mm
PG-S12-10	12mm	10mm
PG-S16-12	16mm	12mm

Reducer Tee

Material Stainless Steel, Plastic

Code	Tube OD	Tube OD2
PGT-S06-04	6mm	4mm
PGT-S08-04	8mm	4mm
PGT-S08-06	8mm	6mm
PGT-S10-06	10mm	6mm
PGT-S10-08	10mm	8mm
PGT-S12-08	12mm	8mm
PGT-S12-10	12mm	10mm
PGT-S16-12	16mm	12mm

Hand Valve Union Straight

Material Stainless Steel, Plastic

Code	Tube OD
HVFF-S04	4mm
HVFF-S06	6mm
HVFF-S08	8mm
HVFF-S10	10mm
HVFF-S12	12mm

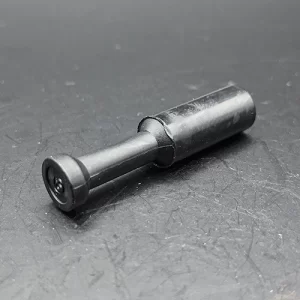

Plug

Material Plastic

Code	Tube OD	Tube OD2
PP0400	4mm	4mm
PP0600	6mm	6mm
PP0800	8mm	8mm
PP1000	10mm	10mm
PP1200	12mm	12mm

Female Bulkhead

Material Brass, Plastic

Code	Tube OD	Thread Size
PMF-S04-01	4mm	1/8"
PMF-S04-02	4mm	1/4"
PMF-S04-03	4mm	3/8"
PMF-S06-01	6mm	1/8"
PMF-S06-02	6mm	1/4"
PMF-S06-03	6mm	3/8"
PMF-S08-01	8mm	1/8"
PMF-S08-02	8mm	1/4"
PMF-S08-03	8mm	3/8"
PMF-S08-04	8mm	1/2"
PMF-S10-01	10mm	1/8"
PMF-S10-02	10mm	1/4"
PMF-S10-03	10mm	3/8"
PMF-S10-04	10mm	1/2"
PMF-S12-01	12mm	1/8"
PMF-S12-02	12mm	1/4"
PMF-S12-03	12mm	3/8"
PMF-S12-04	12mm	1/2"

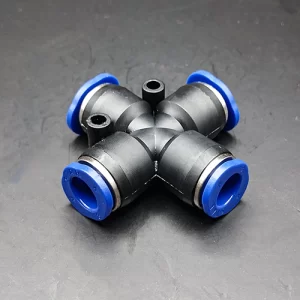

Union Cross

Material Stainless Steel, Plastic

Code	Tube OD	Tube OD2
PZA0400	4mm	4mm
PZA0600	6mm	6mm
PZA0800	8mm	8mm
PZA1000	10mm	10mm
PZA1200	12mm	12mm
